CRAFT PARTICULIARS
| المواصفات التفصيلية للعبارة | |||
|---|---|---|---|
| إسم العبارة : | الرياض | CALL SIGN : | 6AGC |
| IMO NO : | 9441776 | MMSI NO : | 622115040 |
| PORT OF REGISTRY : | ALEXANDRIA | NO. OF REGISTRY : | 3520 |
| KEEL LAID : | 22th AUG. 2007 | Official No. : | 8973 |
| Length waterline : | 77.3 m | Beam (molded) : | 24 m |
| Hull depth (molded) : | 8.25 m | Hull draft maximum : | 4.3 m |
| GROSS TONNAGE : | 6203.77 TON | NET TONNAGE : | 5118.27 TON |
| Max.deadweight : | 555 tones | LIGHTSHIP DIS : | 989 M.TON |
| FULL LOAD DIS. : | 1544 M.TON | ||
| الحمولة والسعات | |||

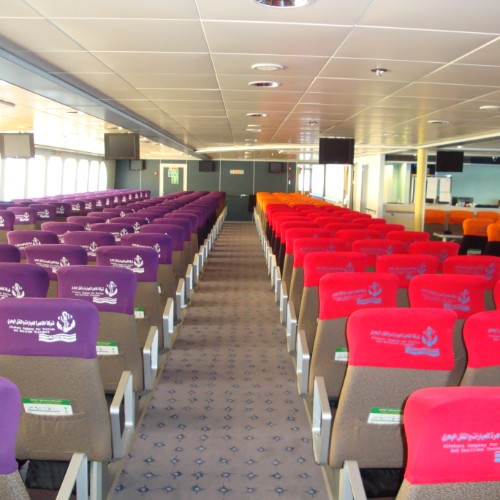

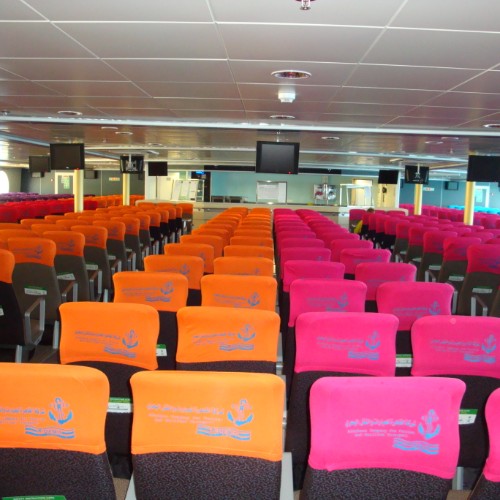

| Length overall : | 88 m | ركاب : | 1185 |

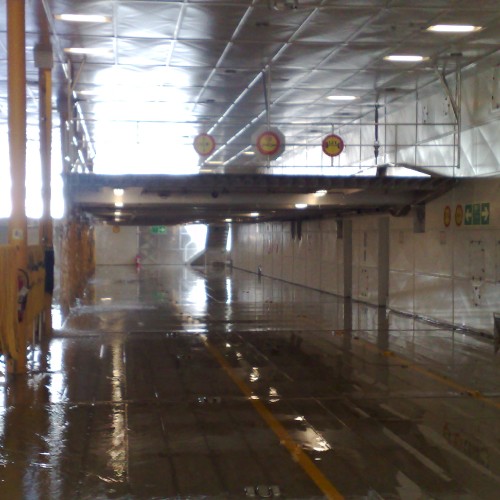

| شاحنات : | 120cars+15 trucks | Crew : | 33 |
| Fuel (maximum) : | 110.000 liters | Fuel(long range tanks) : | 114.5 |
| الدفع | |||
| Main engines : | 4 x (MTU Friedrichshafen gmbh) 20V 8000 M71R ( 569100187, 569100188, 569100189, 569100190) 7,200kw @ 1,150rpm | Generator : | man notzfahrzeuge AG d2866LXE 30-244KW@1500rbm (39018671671/860, 39018672311/860, 39018671171/860, 39018670251/860) |

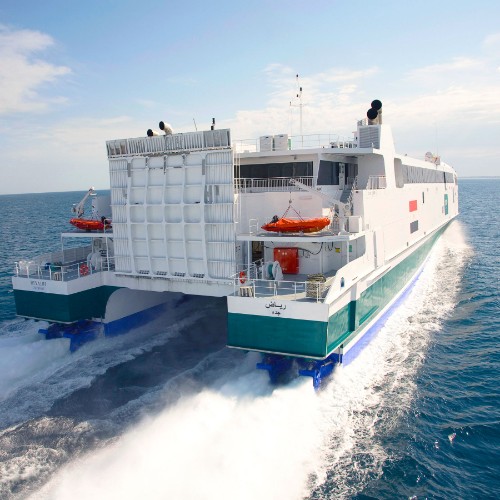

| Gearboxes : | 4 x Reintjes or ZF | Water jets : | 4x or Kamewa 112s11water jets |
| Speed (90% MCR) : | 34 knots | CLASSIFICATION : | DNV-GL |
| Class : | 100 A5 OC3 HSC.PASSENGER-B,RO-RO-TYPE + MC HSC-B (TYPE "B" with increased freeboard) | AUSTAL YARD NO : | 341 |
| Date of delivery : | 15/11/2008 | ||
